Sofa Bed Dimensions Guide: Closed Size, Open Clearance and Room Planning

Sofa bed dimensions should be checked in two states: the closed sofa size and the fully opened sleeping footprint. For apartments, hotel guestrooms and serviced apartment projects, the most important numbers are closed width, closed depth, open depth, front clearance, mattress size and delivery access. A sofa bed that looks compact in seating mode can block a door, TV wall or walkway once it opens. Project buyers should measure the room, the entry path and the quantity plan before confirming a model.

Quick Answer: Sofa Bed Size Ranges

For initial comparisons, the chart below uses illustrative closed widths of 35–55 inches for chair sleepers, 52–68 inches for loveseat sleepers and 72–96 inches for queen-format sleepers. These are not fixed size standards. Measure the full opened product separately from the sleeping surface, and add the operating and circulation space needed for the actual room. Fold-down, pull-out and sectional designs can require different front, rear and side clearance.

For B2B sourcing, treat the standard chart as a starting point, not a final specification. Arm width, back cushion thickness, leg height, mechanism type and mattress thickness all change the final carton size and real room fit. The best RFQ includes a room drawing, target sleeping size, preferred mechanism and delivery path dimensions.

Illustrative Sofa Bed Size Chart by Type

The ranges below are planning examples, not an industry standard or a HUAXUAN model specification. Inch-based bed names vary by market. Use the selected product's dimensioned drawing for the closed size, full open footprint and usable sleeping surface.

Sofa bed type	Closed width	Closed depth	Open depth	Sleeping size	Best use case
Chair sleeper	35-55 in	34-40 in	70-82 in	Cot or twin-like	Studio units, staff rooms, compact guestrooms
Loveseat sleeper	52-68 in	35-40 in	78-88 in	Twin or full	Small apartments, kids rooms, hotel family corners
Queen sleeper sofa	72-96 in	36-42 in	84-95 in	Queen 60 x 80 in	Guestrooms, serviced apartments, wholesale lines
Sectional sleeper sofa	84-120+ in	60-90 in by chaise	80-100+ in	Full to queen	Suites, family rooms, long-stay apartments

Chair Sleeper

A chair sleeper is useful when a room needs one extra sleeping position without turning the whole room into a bedroom. The closed footprint is small, but the buyer still needs to check the front pull-out path. In a project order, chair sleepers can help hotel family rooms, staff housing, small apartments and multi-use lounges add flexibility without buying a full sofa bed.

Loveseat Sleeper

Loveseat sleepers balance compact width with a more practical sleeping surface. They are usually easier to deliver than a full-size sofa bed and can fit in rooms where a queen sleeper would look too heavy. For apartment projects, confirm whether the loveseat opens straight forward or uses a fold-down frame. The mechanism affects front clearance and guest comfort.

Queen Sleeper Sofa

A queen sleeper is the most common choice when buyers want two-person sleeping capacity. It is also the model most likely to create layout problems if the room is narrow. In hotel or serviced apartment procurement, ask for both overall sofa dimensions and mattress platform dimensions. Some queen sleepers have wide arms or thick backs that make the closed sofa much larger than the mattress suggests.

Sectional Sleeper Sofa

Sectional sleepers are useful for suites and family apartments, but they need detailed layout control. The chaise direction, module joint, ottoman storage and open sleeping area should be shown on a plan. If the order covers multiple room types, use clear left-hand and right-hand labels so site teams do not receive the wrong orientation.

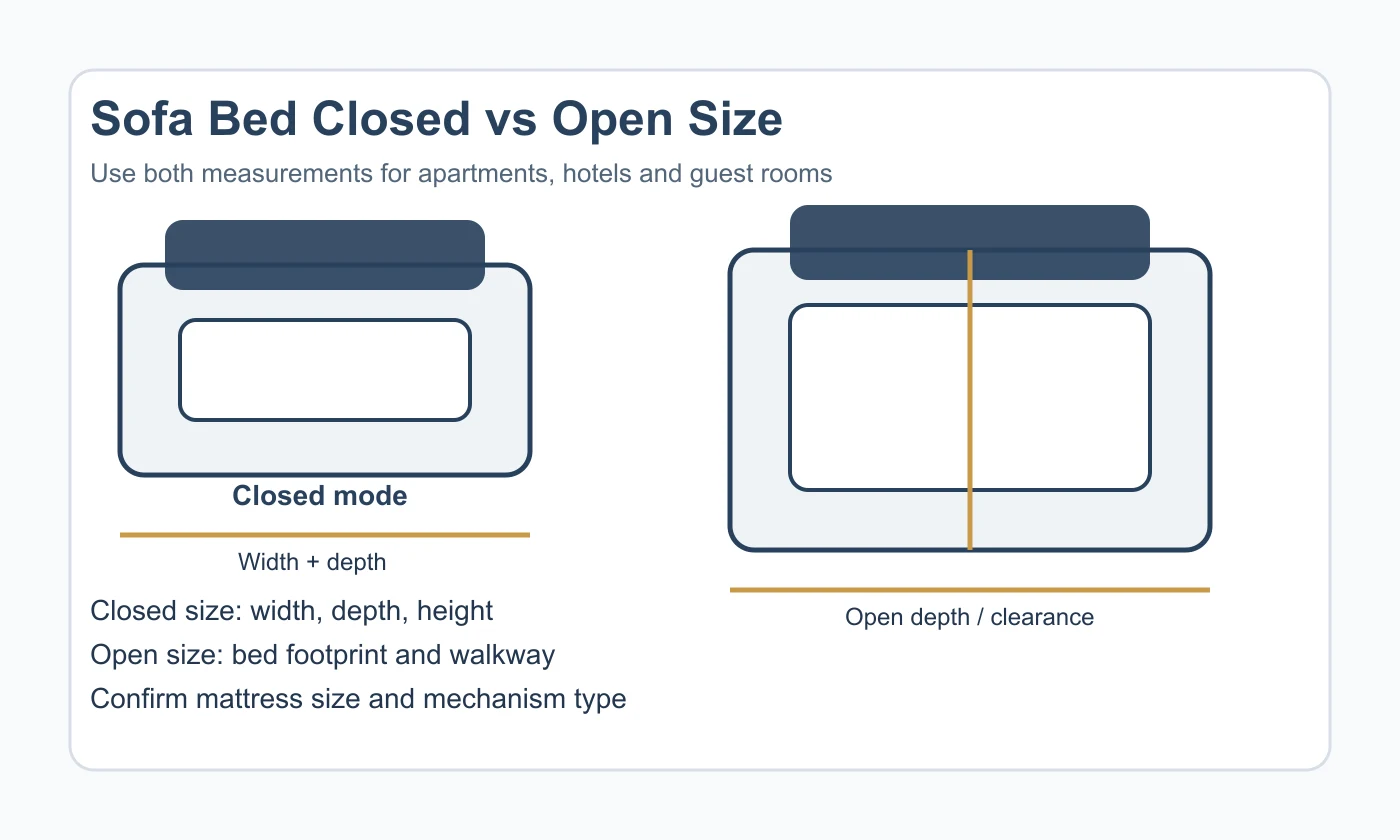

Closed Size vs Open Size

The closed size tells you whether the sofa bed works as daily seating. The open size tells you whether it works as a bed. Both matter. A buyer who only checks closed size may discover that the sofa bed hits a coffee table, cabinet, wardrobe, balcony door or TV unit when opened. A buyer who only checks sleeping size may receive a sofa that looks too bulky during the day.

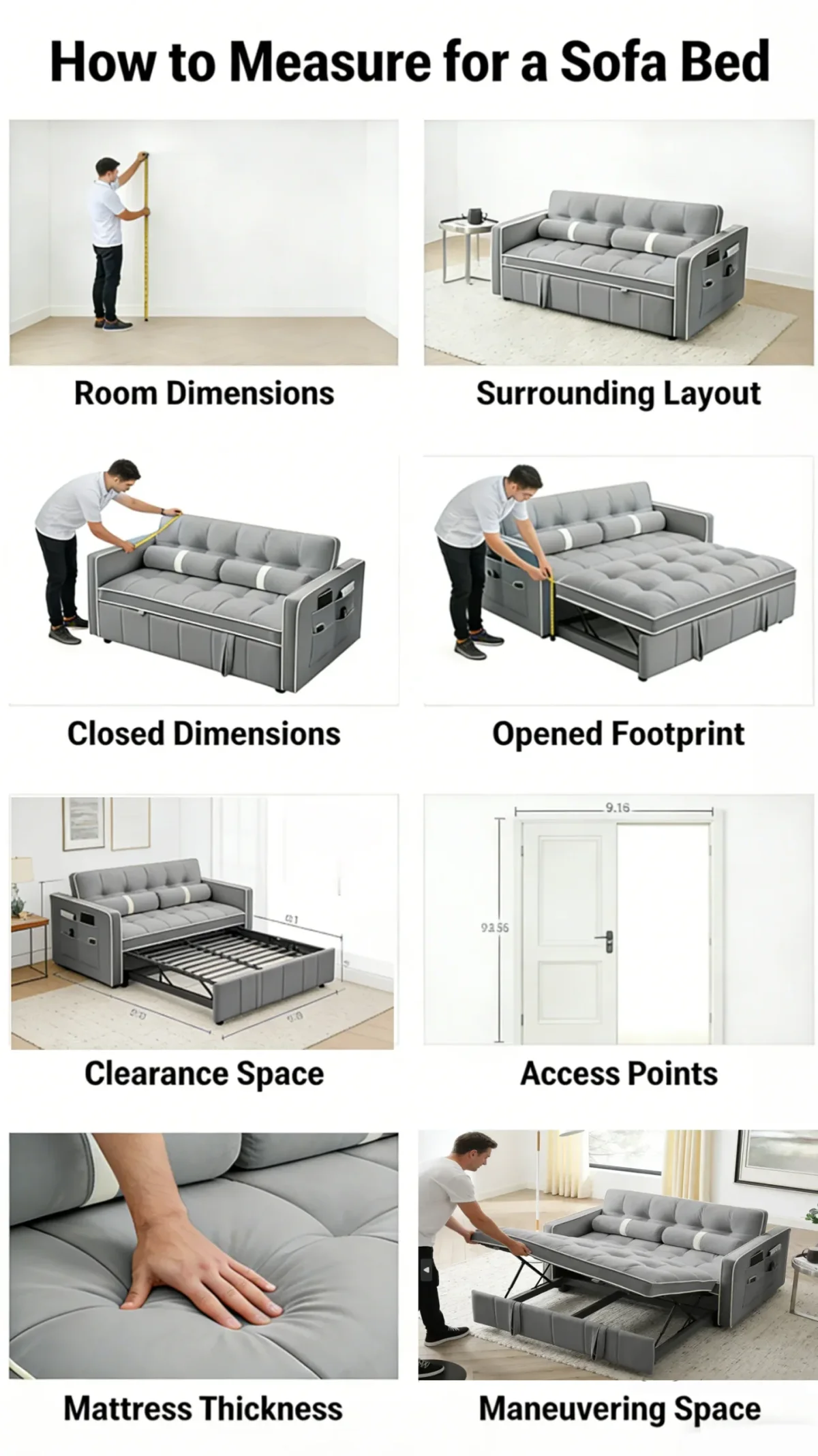

When comparing sofa bed dimensions, ask the supplier to mark width, closed depth, back height, seat height, open depth, mattress width, mattress length and mattress thickness on the same drawing. The drawing should also show whether the mechanism pulls forward, folds down, flips over or slides out. For project buyers, this drawing becomes part of the approved specification and protects later repeat orders.

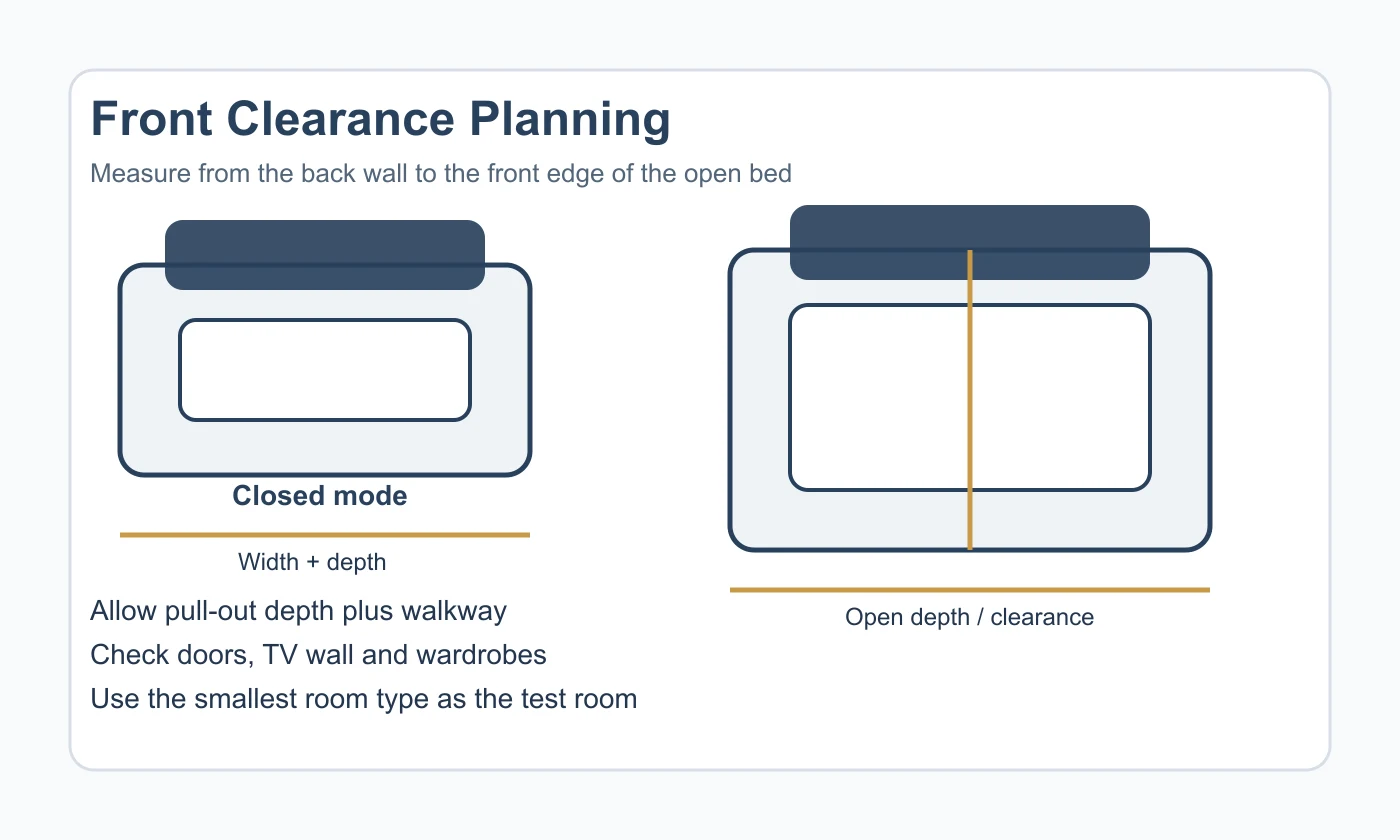

How Much Front Clearance Does a Sofa Bed Need?

Front clearance is the free floor area in front of the closed sofa needed for movement and use. It is different from total open depth measured from the back of the sofa to the furthest opened part. Obtain both measurements from the selected model drawing, then allow the room's required operating space and circulation route. The chart's open-depth examples do not establish a minimum walkway or an accessibility requirement.

Clearance should be checked with real room obstacles. A sofa bed may technically open, but still fail the room if it blocks the entry door, the bathroom route, wardrobe access or housekeeping circulation. For hotels and serviced apartments, open clearance also affects guest complaints and housekeeping efficiency.

Sofa Bed Dimensions for Apartments

Apartment buyers usually need a balance between seating comfort, sleeping function and container efficiency. In studio apartments, a compact loveseat sleeper or armless sofa bed can work better than a large queen sleeper. In one-bedroom or serviced apartments, a queen sleeper can add value if the living room still leaves space for a coffee table, side table and walking route.

Apartment projects should review the room as a package. Sofa bed dimensions affect rug size, TV distance, balcony access, dining table position and power outlet location. If one model will be used across many units, test the smallest room type first. A model that fits the large plan but fails in the smallest plan will create purchasing waste.

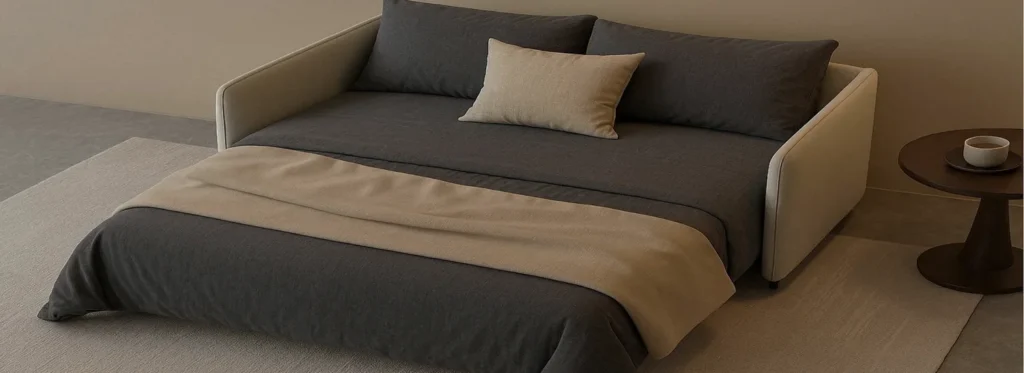

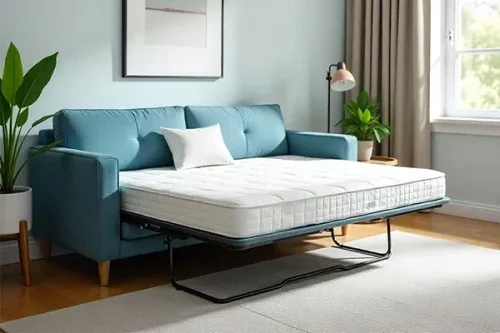

Sofa Bed Dimensions for Hotels and Guest Rooms

Hotels need sofa beds that are easy for guests and housekeeping teams to operate. The correct size depends on room category. A compact sofa bed can support family guestrooms, long-stay rooms and connecting room programs. A queen sleeper may suit suites, but it should not reduce luggage space or block the housekeeping path. For hotel furniture programs, the open bed position should be reviewed on the same drawing as the bed, desk, wardrobe and TV wall.

Hotel buyers should also consider mattress thickness and mechanism durability. A thicker mattress may feel better, but it may not close properly inside every frame. A light-duty residential mechanism may reduce price but fail under frequent turnover. Ask the supplier to confirm the mechanism type, spare part policy, fabric cleaning direction and packing method before sample approval.

Doorway, Elevator and Delivery Access Considerations

Sofa bed dimensions are not only about room layout. A heavy sleeper sofa has a frame, mattress and mechanism inside, so it can be harder to move than a normal sofa. Check doorway width, elevator cabin size, corridor turns, staircase width and ceiling height. If the sofa is packed as one large piece, the delivery path can become the limiting factor.

Room dimensions and the open sleeper footprint do not establish delivery access. Use the sofa bed delivery measurement checklist to compare actual cartons with doors, turns and elevators.

For project orders, ask whether legs can be removed, whether modules can be packed separately and whether the mechanism is protected during transport. The diagonal depth of the packed sofa is often important for tight turns. If a property uses small elevators, a modular or KD structure may be safer than one large fixed sofa bed.

Delivery access should be confirmed before the buyer approves the final size, because a sofa bed is usually heavier and less flexible than a normal sofa. The mechanism and mattress add weight, while the arms and back can make the carton difficult to rotate in a corridor. For hotels, apartments and serviced residences, the project team should compare the packed dimensions with the narrowest real access point, not only the main entrance. If the delivery path is tight, ask whether the sofa bed can be shipped with removable legs, separated modules or reinforced corner protection.

Shipping and Packing Considerations for Project Orders

Export packing must protect the upholstery, mechanism, corners and visible legs. For sofa beds, the metal mechanism should be locked or secured so it does not move inside the carton. Buyers should request carton size, gross weight, net weight, loading quantity, carton marks and room labels. For multi-room hotel or apartment projects, cartons should be grouped by room type or installation batch.

Shipping volume can change the real cost of a sofa bed program. A sofa bed with wide arms and fixed legs may look premium, but it can reduce container loading efficiency. A compact arm, removable leg or KD component may improve logistics without changing the guest experience. Review export packing for upholstered furniture and MOQ and lead time planning before locking the order.

For repeat orders, keep a packing reference after the first shipment. The reference should include product photos, carton photos, corner protection, carton mark format, loading method and any spare hardware included with each sofa bed. This makes later orders easier to audit and helps the buyer compare whether a new batch follows the approved standard.

Project Buyer Checklist Before Ordering Sofa Beds

Checklist item	What to confirm	Why it matters
Room size	Wall length, room width, fixed furniture and circulation	Prevents oversizing
Doorway size	Narrowest door, turn and corridor point	Avoids delivery failure
Elevator size	Cabin depth, width, door opening and weight limit	Controls site handling
Open depth	Back wall to front of opened mattress	Confirms real sleeping mode
Mattress thickness	Allowed thickness and comfort target	Affects closing and comfort
Mechanism type	Pull-out, fold-down, click-clack, slide-out or sectional	Defines operation and durability
Fabric requirement	Color, cleanability, abrasion and fire requirement if needed	Controls hotel or rental performance
Quantity	By model, room type and delivery batch	Improves quote accuracy
Packaging method	Carton, corner protection, mechanism lock and room labels	Protects export shipment
Destination market	Target country, voltage-related accessories if any and compliance notes	Supports correct documentation

Room Planning Table

Room type	Recommended sofa bed type	Illustrative open depth	Best application	Notes for project buyers
Studio apartment	Chair sleeper or loveseat sleeper	70-84 in	One extra sleeping place	Test with TV wall and wardrobe open
Hotel guestroom	Compact loveseat or queen sleeper	80-95 in	Family room or long-stay room	Keep luggage and housekeeping path clear
Serviced apartment	Queen sleeper sofa	84-95 in	Flexible guest accommodation	Confirm fabric cleaning and spare parts
Hotel suite	Sectional sleeper sofa	90-100+ in	Family suite and premium room	Label left/right modules carefully

From Room Measurements to Sample Approval

For product matching, start with custom sofa bed manufacturing support and sofa and couch options. For model selection, review sofa bed references and their published closed and sleeping dimensions. For production control, use sample approval support, quality control checks and send your model code and quantity for quotation.

Keep the chosen model code, closed dimensions, full open footprint and sleeping surface on the same specification sheet. Record delivery restrictions separately, then compare the drawing with the sample before approving a bulk order. Do not treat the room-planning table as a minimum clearance requirement.

Product dimensions are only the first logistics input. The sofa bed packaging and container loading guide explains how to verify packed cube, carton orientation and loading evidence.

FAQ

What are standard sofa bed dimensions?

Standard sofa bed dimensions vary by type. Chair sleepers may be 35 to 55 inches wide, loveseat sleepers about 52 to 68 inches wide, queen sleepers about 72 to 96 inches wide, and sectional sleepers can exceed 100 inches depending on modules.

How much space is needed in front of a sofa bed?

Many pull-out sofa beds need 84 to 95 inches from the back of the sofa to the front of the open mattress. Add walking clearance where possible, especially in hotels and serviced apartments.

Which sofa bed size is best for hotel guestrooms?

Compact loveseat sleepers and queen sleepers are common, but the best size depends on room category, luggage space, housekeeping path and guest capacity.

Should buyers check mattress thickness?

Yes. Mattress thickness affects comfort and whether the sofa bed can close smoothly. Ask the manufacturer for the allowed thickness before changing mattress specification.

Can HUAXUAN customize sofa bed dimensions for bulk orders?

HUAXUAN can review the selected sofa bed model, required closed and sleeping dimensions, quantity, fabric, mechanism, opening clearance and destination for bulk orders.

Send Model Code and Required Size

A good sofa bed order starts with measurements, not just a reference photo. Send the model code, desired closed and sleeping size, open clearance, quantity and destination. HUAXUAN can help review whether a chair sleeper, loveseat sleeper, queen sleeper or sectional sleeper is the more practical direction for your bulk order.
