70-Inch Sleeper Sofa Guide: Width, Sleeping Size and Space Requirements

Quick Answer: How Wide Is a 70-Inch Sleeper Sofa?

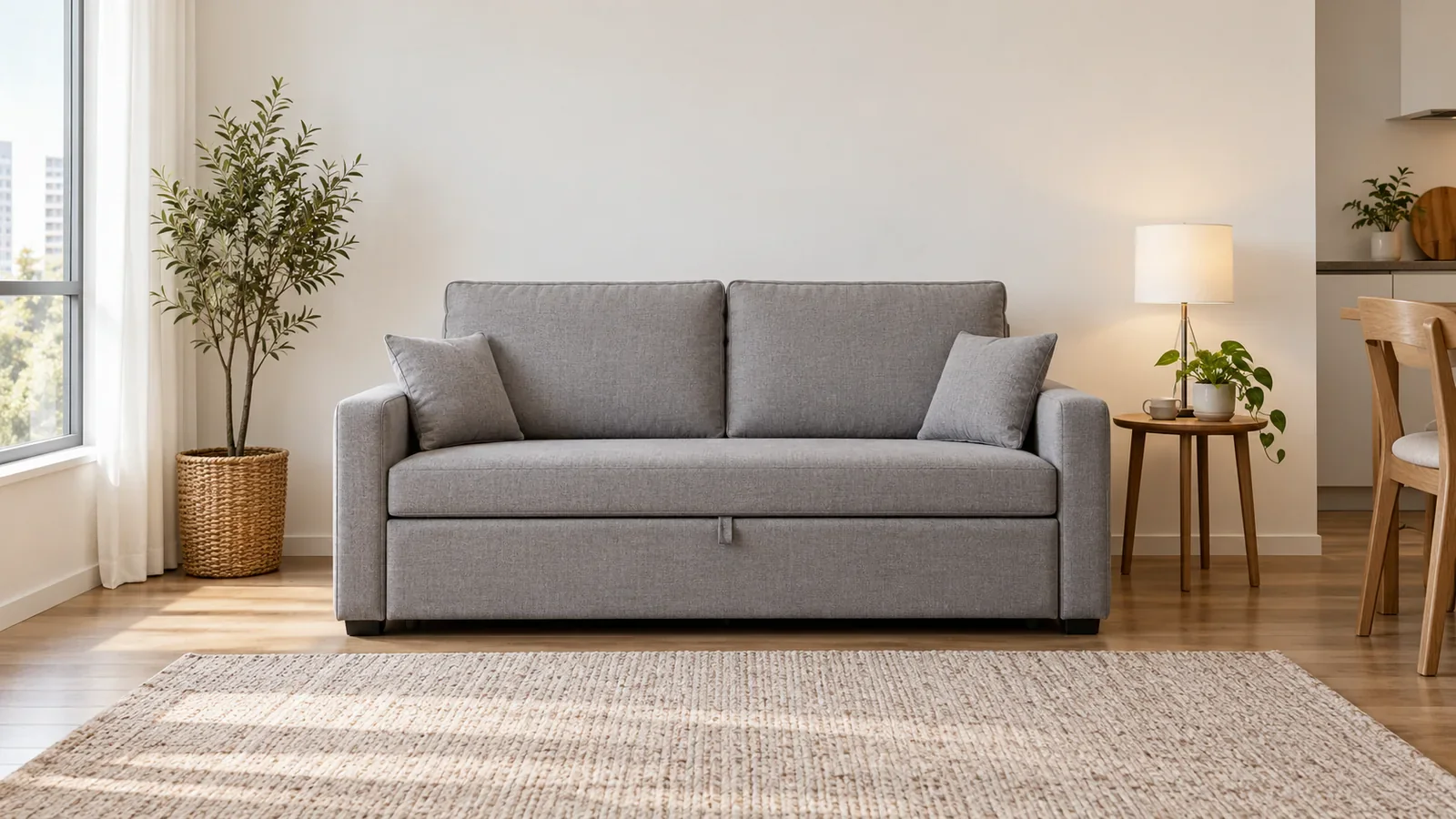

A 70 inch sleeper sofa generally means an overall closed sofa width of approximately 70 inches, or 1,778 mm. It does not automatically provide a 70-inch sleeping surface. Arms, frame and sleeper mechanism occupy some of the outside width; the usable seat and bed can be narrower. Product naming varies by seller, so request a dimension drawing with overall width, open depth and actual sleeping surface. For a fixed wall, allow for the measured unit and the room layout instead of relying on a category name alone.

This guide addresses a buyer with a limited wall, room or delivery width. The broader sofa bed dimensions guide covers full sizing terminology. Here the practical question is whether a 60, 70, 72, 75 or 80-inch class sleeper will fit a particular space and still provide the required sleeping arrangement. Illustrations are unmeasured editorial concepts, not HUAXUAN model drawings.

What Does “70 Inch” Measure?

In many product listings, “70 inch” describes the outside width of the sofa in its closed position, from the furthest point on one side to the furthest point on the other. That is the number most relevant to a wall niche or furniture plan. A seller may instead use a rounded number, a seat-width figure or an approximate marketing size. Verify which reference points were used before approving a bulk purchase.

One inch equals 25.4 mm, so 70 inches equals 1,778 mm. The conversion is precise, but the product claim may be rounded. A drawing should state the actual manufactured dimension and any tolerance the supplier uses. Confirm whether feet, trim, side controls, power connectors or a projecting arm affect the maximum width. An apparently small projection can prevent a unit from entering a tight recess.

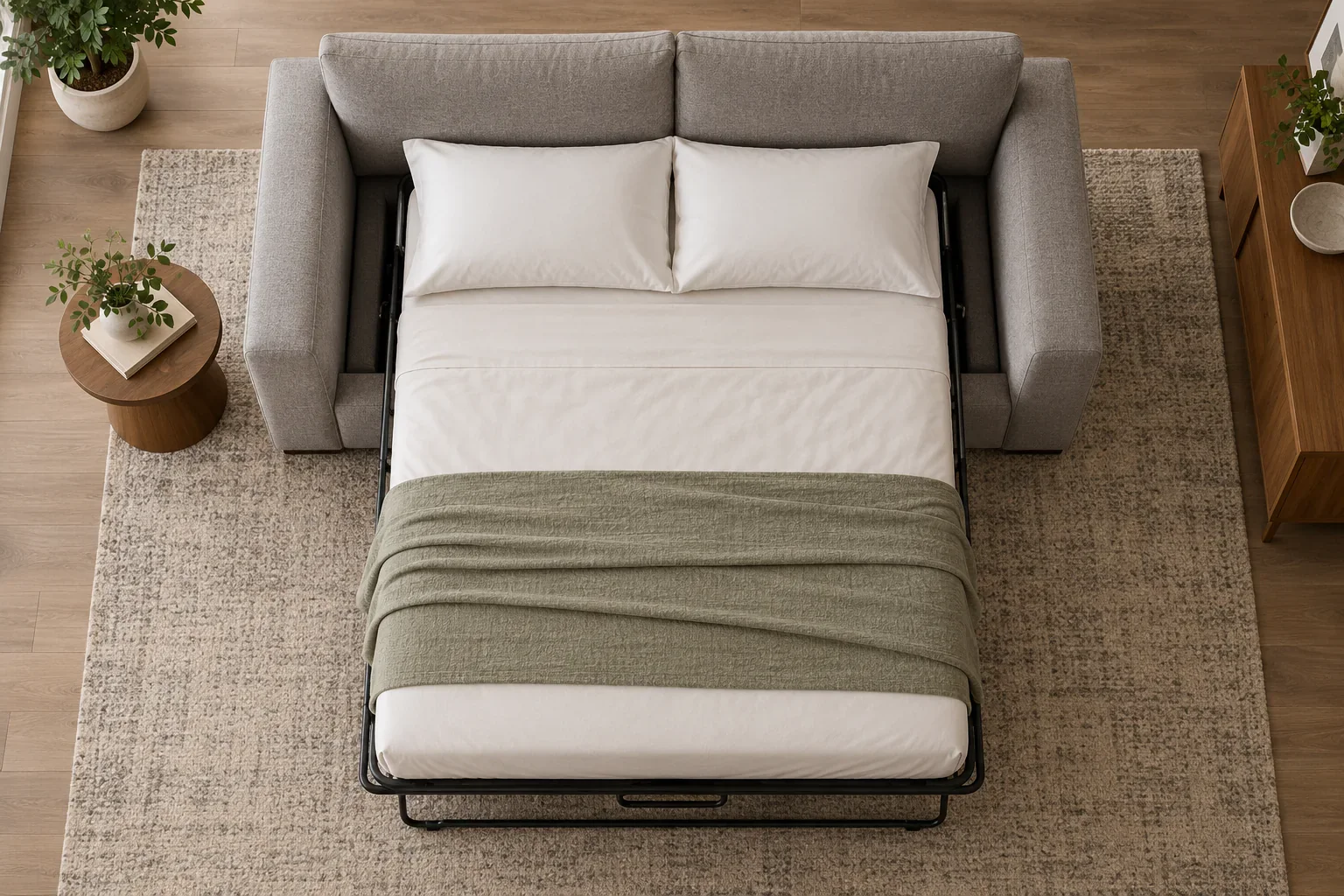

Overall sofa width is not sleeping surface width. A thick rolled arm consumes more of the outside envelope than a slim arm; a frame or mechanism may also reserve space. The bed can extend forward or unfold in another direction, so closed width alone does not describe its sleeping area. When comparing a 70 inch sofa bed with a 72 inch sleeper sofa, use the same measurement definitions for both.

70-Inch Sleeper Sofa Dimensions to Request

There is no universal closed depth, open depth or mattress size for every sofa in this width class. Mechanism, cushion design and arms change the geometry. Use the following dimension schedule as a request to the manufacturer rather than filling the cells with assumed numbers. If units will be repeated across rooms, compare each actual drawing with the tightest room.

70 Inch vs 72 Inch Sleeper Sofa

A 72 inch sleeper sofa is two inches wider than a nominal 70-inch model: 50.8 mm. That difference may be immaterial along an open wall, but decisive in a wall niche, between built-in furniture, inside a compact apartment or beside a hotel room doorway. Allow for the actual product dimensions and the placement method, not just the difference between listing titles. A wall that measures exactly 72 inches is not a reason to assume a 72-inch sofa can be installed there.

The extra overall width does not guarantee extra sleeping width. A 72-inch sofa sleeper with broad arms might offer less usable seat space than a 70-inch version with slim arms. Frame and bed mechanisms can further alter the internal platform. Ask for seat and sleeping dimensions on both candidates, plus closed and open drawings. Compare the full package against the same room and access route.

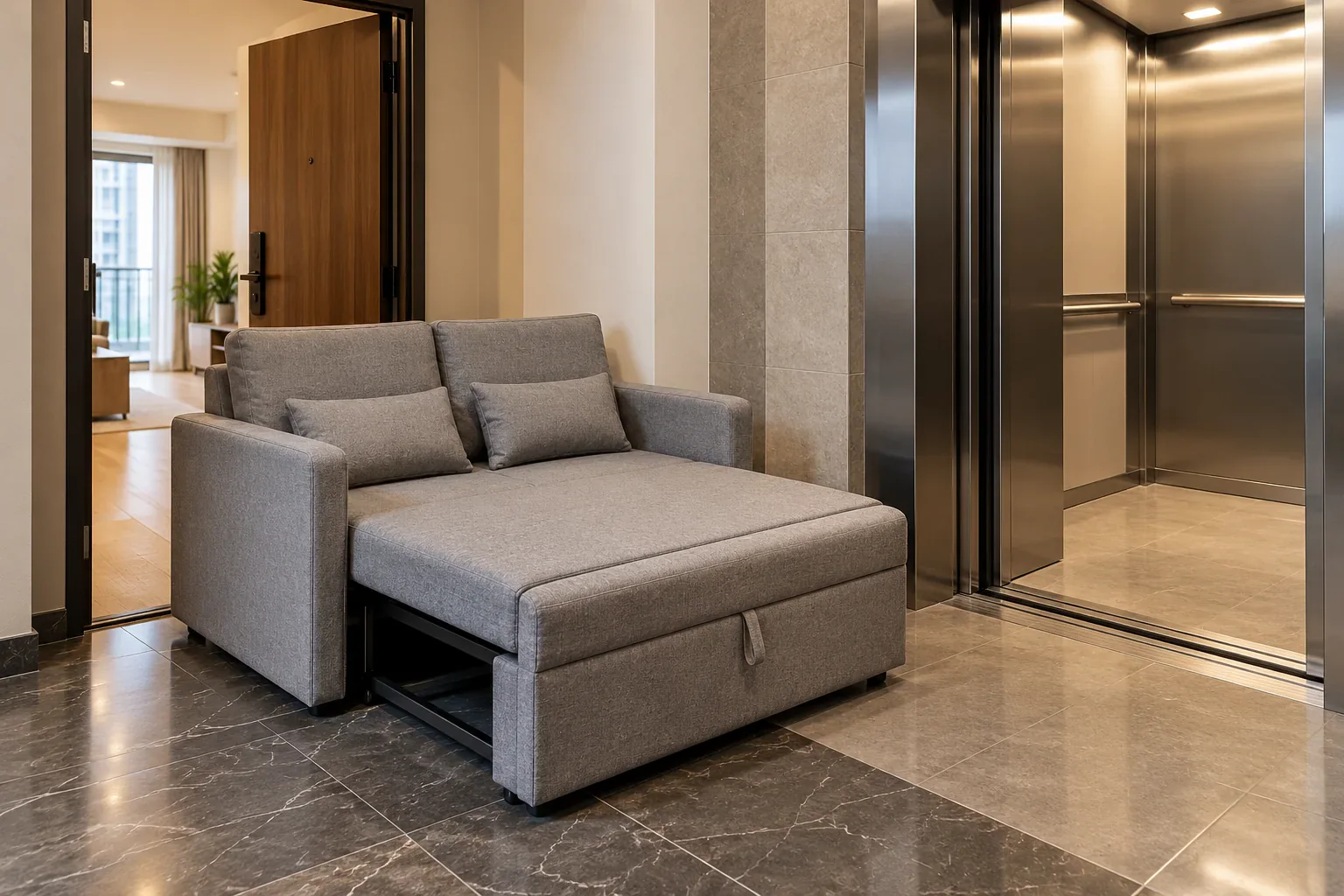

Doorway and elevator dimensions deserve separate checks. The assembled sofa may be wider than an opening, but some designs can arrive in modules or with removable feet; other designs cannot. Confirm the actual packed-unit dimensions and permitted assembly sequence. Do not assume a two-inch gain or reduction solves delivery without checking the tightest turn, landing and elevator door.

60 vs 70 vs 72 vs 75 vs 80 Inch Sleeper Sofas

These are outer-width categories, not mattress classifications. A size label alone cannot tell you whether a product has a twin, full or queen sleeping surface. Seat capacity also varies with arm and cushion design. Use the table to narrow the space brief, then request actual model dimensions and drawings before approving a product.

The ranges describe nominal categories, not dimensions of HUAXUAN models. An “80 inch sleeper sofa” could still have a sleeping surface that is narrower than a different model in a lower width class. Similarly, two 70-inch products can have different mattress lengths, conversion directions and front clearances. Use the table as a conversation starter, then compare signed drawings and operating samples.

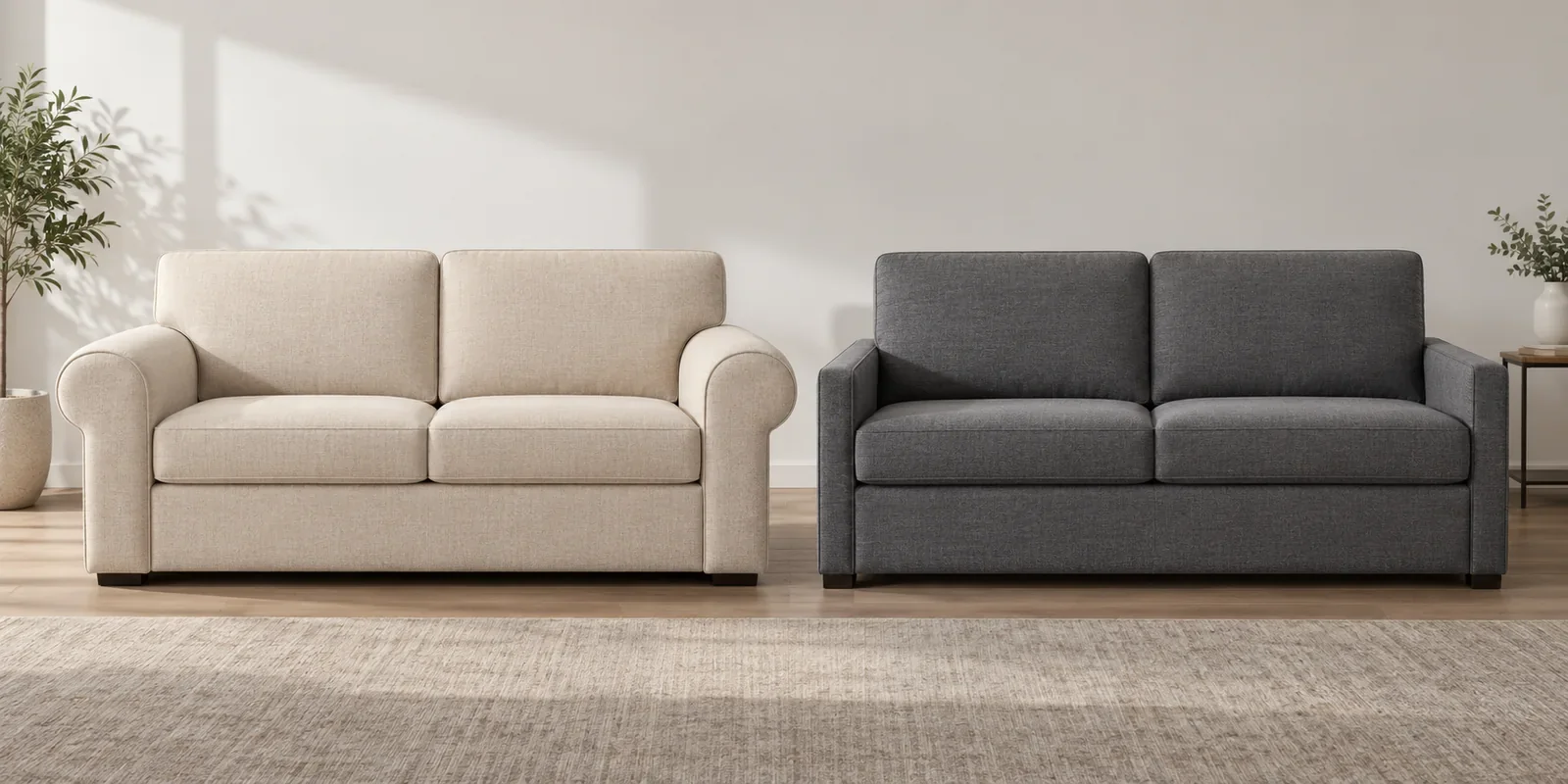

Arm Width Changes Usable Seat Width

Imagine two closed sleeper sofas that each measure 70 inches across the outside. One has thick rolled arms; the other has slim straight arms. The rolled arms use more of the total envelope, leaving less width between them for sitting. If the sleeping platform is housed inside the arm structure, the same design choice may limit sleeping width. The example explains geometry, not a measured HUAXUAN model.

Arm shape is only one variable. Internal frame rails, upholstery thickness and the mechanism can also use space. A fold-flat surface may have a different relationship to outside width from a pull-out mattress. Ask for an annotated plan showing overall, between-arm, seat and sleeping widths. If the product will be shown in retail, keep those measurements distinct on product data and room-planning materials.

A slim arm does not automatically improve the whole purchase. Buyers still need the required support, comfort, durability and appearance. The right comparison is the actual usable space and construction for the intended market. For a related compact layout example, see the armless sleeper sofa guide; removing arms changes the design brief rather than merely reducing one measurement.

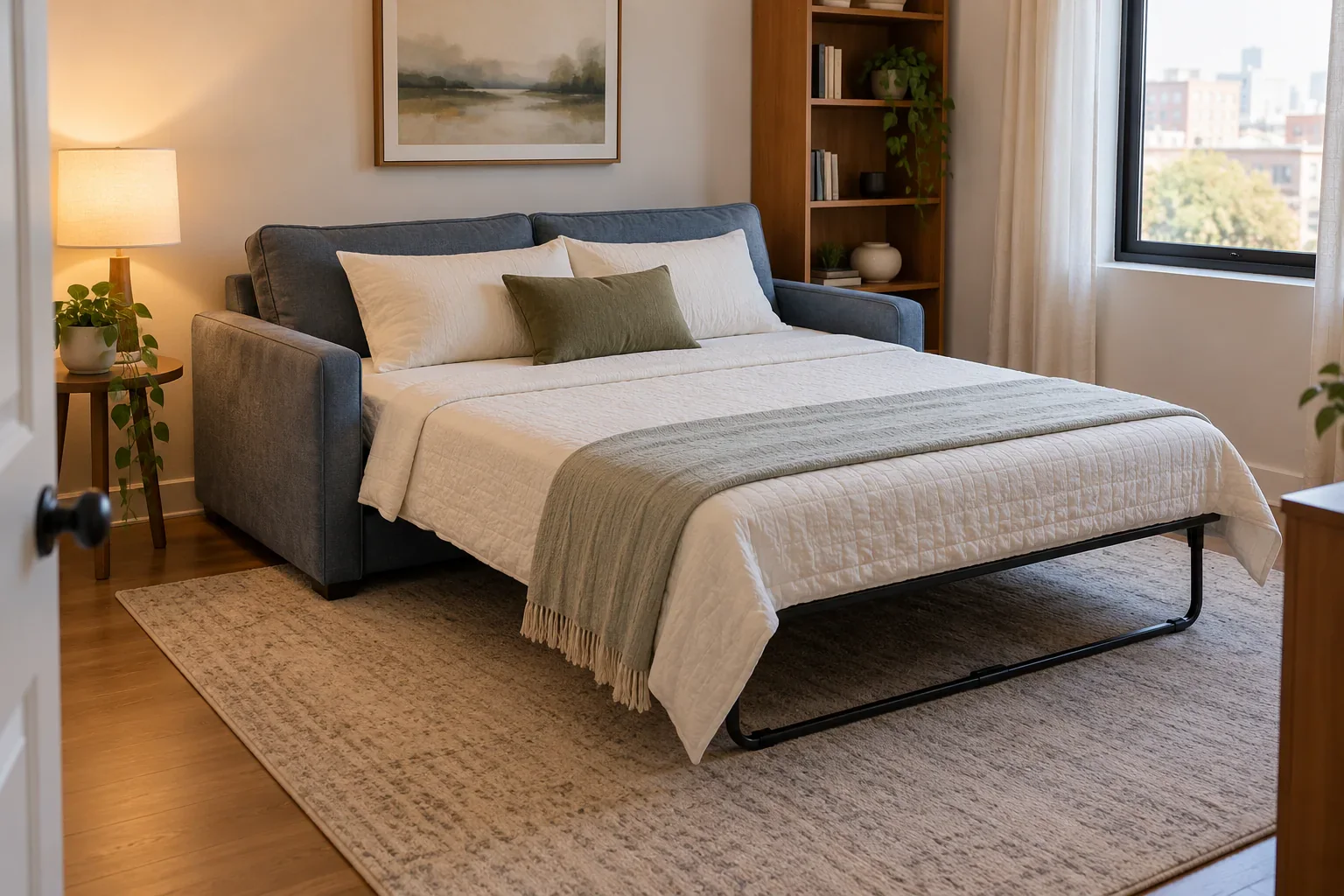

How Much Space Does a 70-Inch Sleeper Sofa Need When Open?

Plan from the selected sofa’s closed depth and open depth. Closed depth defines the everyday furniture footprint. Open depth shows how far the bed extends into the room. The difference is not always the complete clearance required, because users need room to operate the mechanism and access the sleeping surface. Ask for the maximum envelope at intermediate movement as well as the final open position.

Front clearance should account for the sofa’s travel and any table or movable furniture. Side clearance should allow practical access and prevent the bed from pressing against adjacent cabinetry or walls. A walkway may need to remain usable for the intended room operation. These are planning guidelines, not a universal building-code claim. Apply any project-specific accessibility or fire requirements through the appropriate local professionals.

A sleeper that fits in closed mode may block a door or circulation path when open. Draw both footprints on the actual floor plan. Include the most restrictive room, not only the average room. If a room has angled walls, columns or a deep window recess, measure the smallest available envelope at the sofa’s installed height. Confirm there is a workable conversion path with an operating sample.

70-Inch Sleeper Sofa vs Twin, Full and Queen Sleepers

Outside sofa width and sleeping size answer different questions. “Twin,” “full” and “queen” refer to sleeping-surface categories, while “70 inch sleeper sofa” usually refers to the outside closed width. A 70-inch sofa cannot automatically be called a full-size sleeper or a queen sleeper. Verify the actual mattress or platform width and length against the destination market’s size convention. Suppliers may use different naming conventions or round dimensions.

If the brief calls for a twin sleeping surface, compare the specific twin sofa bed guide with the product drawing. For a full platform, use the full-size pull-out guide. A queen requirement needs its own verified platform measurement; the queen-size dimension guide explains the broader category. These articles provide context, not a substitute for the manufacturer’s model-specific drawing.

Sleeping length matters as much as width. Arm-to-arm seating width may look generous while the folded platform is short. Confirm whether the given sleeping dimension includes soft cushion edges, mattress piping or usable flat surface only. If bedding will be standardized across a serviced apartment program, compare the actual bed with the planned bedding package and housekeeping procedure.

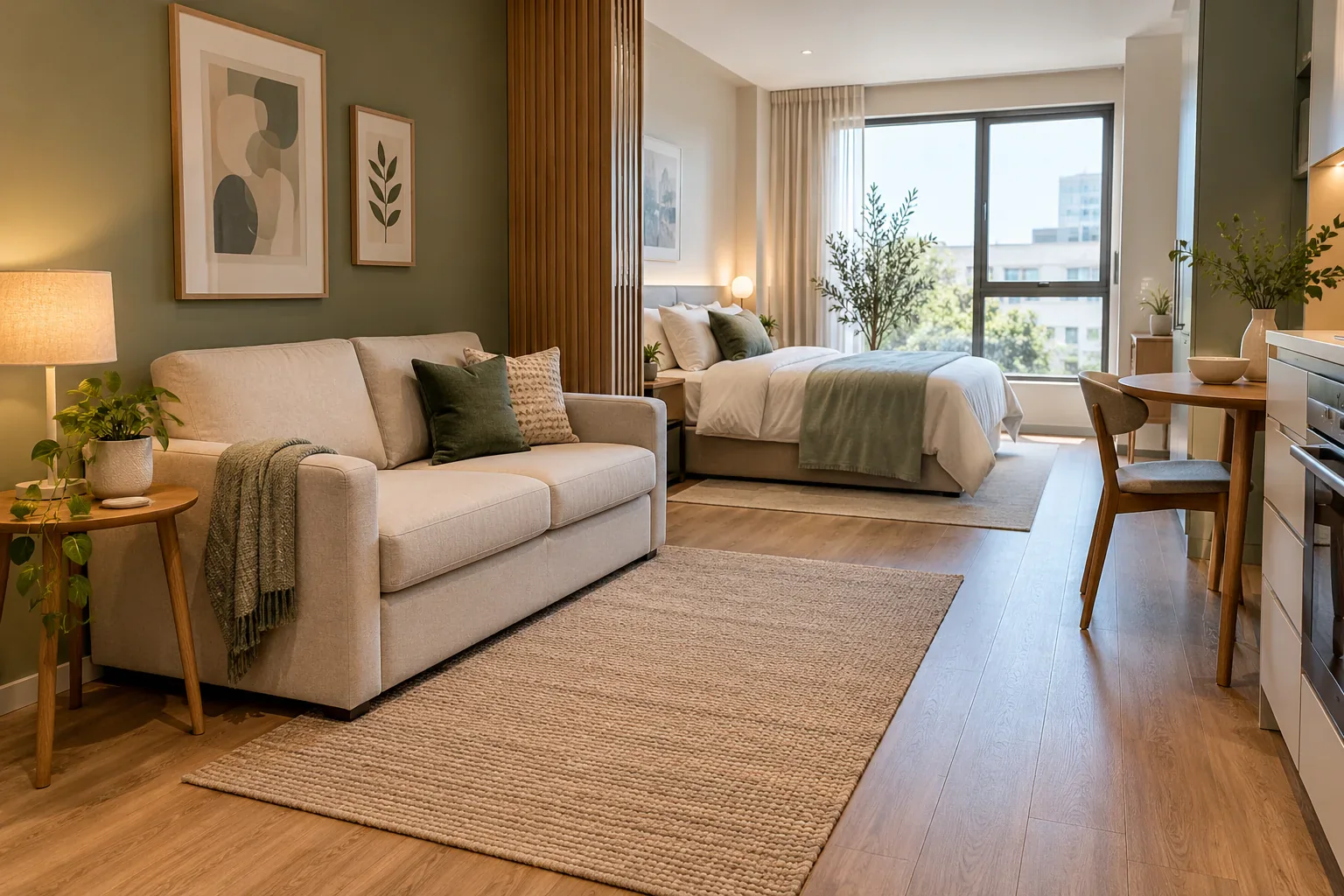

Best Applications for 60–80 Inch Sleeper Sofas

A 60-inch class unit may help a compact studio where every side inch matters, but its sitting and sleeping functions still need validation. A 70- or 72-inch class sleeper often serves apartments, serviced apartments and guest rooms with a two-seat brief. A 75- or 80-inch class unit can suit larger rental units or retail assortments that can dedicate more wall space. These are planning examples, not promises that every design in a width class fits the use.

Hotels and serviced apartments often repeat a room layout across many units. In that setting, review the tightest wall, the smallest door and the open-bed circulation path before confirming quantity. Rental property buyers should also consider cleaning access and moving furniture during turnover. Furniture retailers can use width classes to organize an assortment, but should show the actual overall and sleeping dimensions on each product card.

The sofa bed collection offers a commercial starting point. A grey fabric pull-out reference shows a related construction example. It is not labeled a 70-inch model here: request its current drawing if it is relevant to a fixed-width project. Avoid assigning an unverified size to any product image.

Wholesale Buyer Measurement Checklist

Send a room plan and a dimension schedule with the inquiry. State whether the maximum wall width is absolute or a preferred planning target. Clarify if the furniture can be assembled in the room and whether other objects will move for bed operation. Record the approved drawing revision so that room planners and production use the same numbers.

• Maximum available wall width and side obstacles.
• Actual overall sofa width, including arms and projecting parts.
• Arm width and usable seat width.
• Closed depth and open depth, including intermediate conversion envelope.
• Actual sleeping surface width and length.
• Front, side and walkway clearance on the room plan.
• Doorway, corridor, corner and elevator dimensions.
• Packed-unit or module dimensions and assembly constraints.
• Sleeper mechanism and target market size terminology.
• Order quantity, room types and sample approval method.

Do not order from a listing title alone. Ask the supplier to demonstrate the conversion and measure the resulting sleeping surface on the finished sample. If there are several room types, check every critical layout or choose the strictest shared specification. A small nominal difference between 70 and 72 inches may matter at scale when the same furniture is installed repeatedly.

Frequently Asked Questions

What does a 70-inch sleeper sofa mean?

It usually means the sofa is about 70 inches wide across its outside closed frame. It does not specify sleeping width or open depth. Confirm the seller’s measurement points on a dimension drawing.

Is a 70-inch sofa bed a full-size sleeper?

Not necessarily. Overall sofa width and sleeping-surface size are separate measurements. A full-size claim should be checked against the actual mattress or platform width and length for the target market.

Can a 70-inch sleeper sofa have a queen bed?

Do not assume it can or cannot from the outside width alone. Mechanism and arm construction determine the internal space. Request an actual open drawing and measured sleeping surface before using a queen label.

What is the difference between a 70-inch and 72-inch sleeper sofa?

The nominal outside-width difference is two inches, or 50.8 mm. That may affect a niche or delivery route, but it does not guarantee a corresponding change in seat or sleeping width.

How much space is needed to open a 70-inch sleeper sofa?

It varies by mechanism and model. Check closed depth, intermediate travel, final open depth, front clearance, side access and the remaining walkway on the room plan.

What measurements should wholesale buyers confirm?

Confirm exterior width and depth, arm and seat widths, open depth, sleeping width and length, room clearances, access route and packaged dimensions. Use the finished operating sample to validate the drawing.
